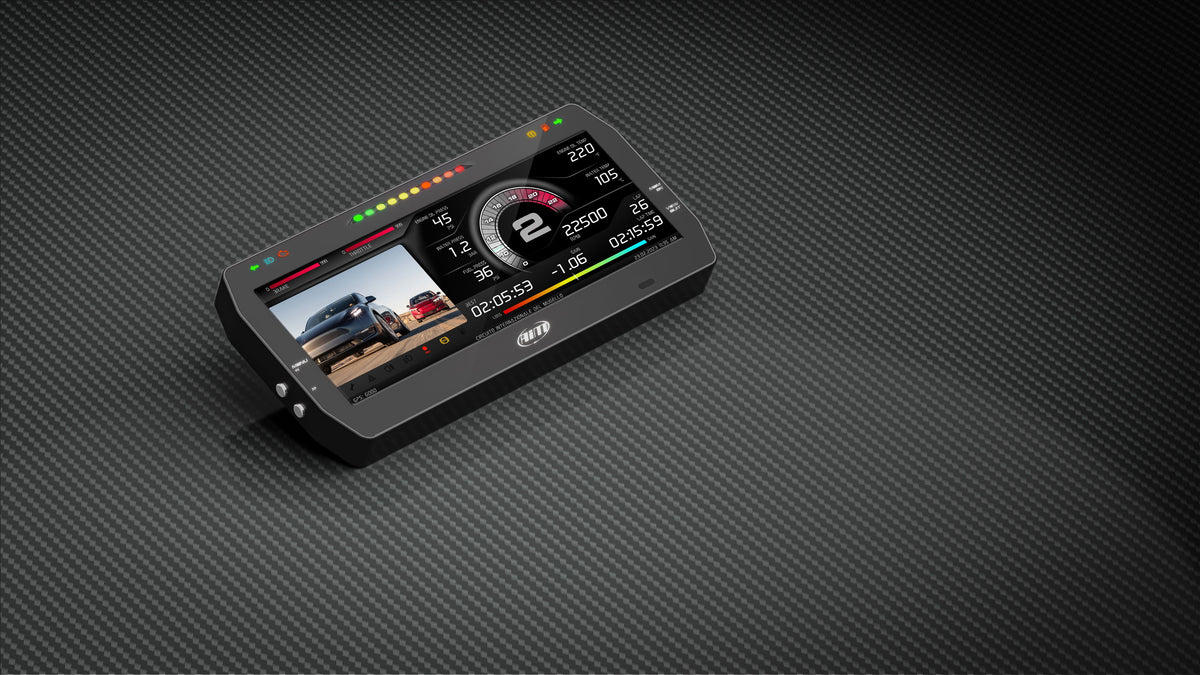

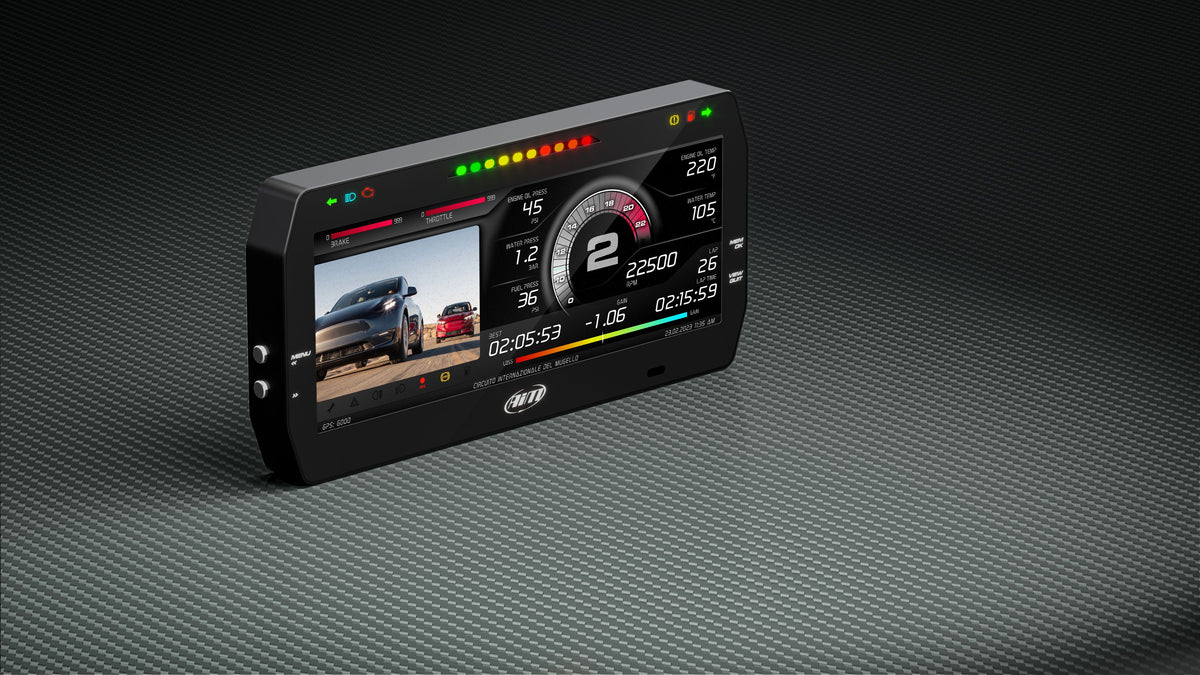

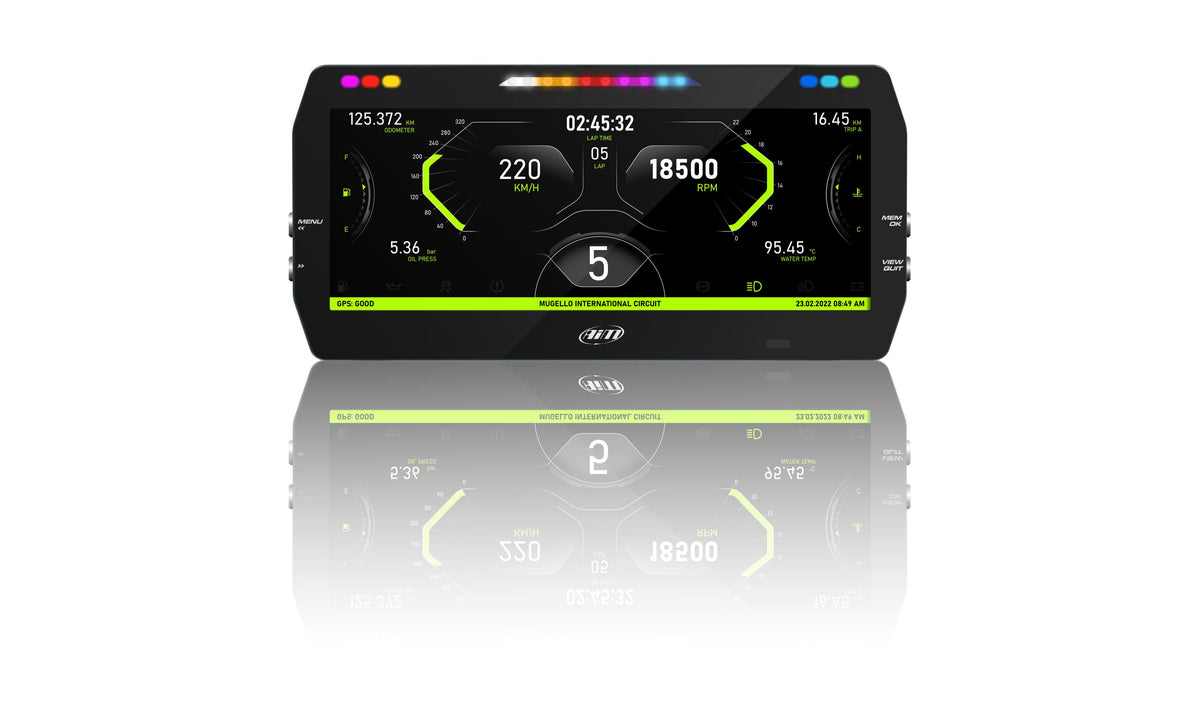

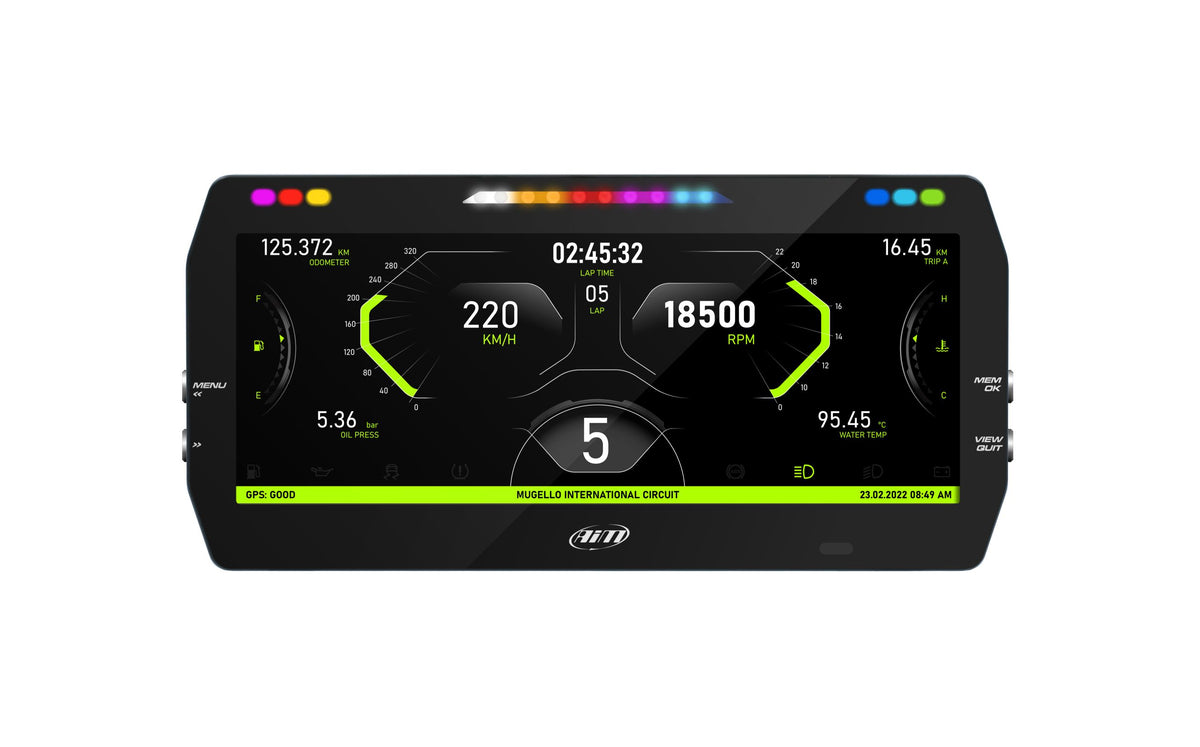

AiM MXT 1.3 10" Logging Dash with GPS

The 10'' color TFT dash logger for motorsports

AiM dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09 included in the kit (dash logger versions only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes
more than 1,500 ECU protocols.

Display: 10” TFT
Resolution: 1280x480 pixels
Contrast: 1,100:1
Brightness: 800cd/m2
Ambient light sensor: Yes
Alarm LEDs: 6 RGB freely configurable
Shift lights: 10 integrated freely configurable RGB LEDs
CAN connections: 3
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 2,000 industry leading ECUs
Expansion CAN connection: GPS09c, Channel Expansion, TC Hub, Lambda Controller, SmartyCam 3 Series
Inertial platform: Internal 3 axis ±5G accelerometer + 3 axis gyro max 100 Hz
Analog/digital inputs: 8 fully configurable, max 500 Hz each
Digital inputs: 4 Speed inputs, lap signal, coil RPM input
Digital outputs: 2 (1 A max each)
Second CAN: Yes
Wi-Fi connection: Yes
Internal memory: 4 GB
Body: Anodised Aluminium
Pushbuttons: Metallic

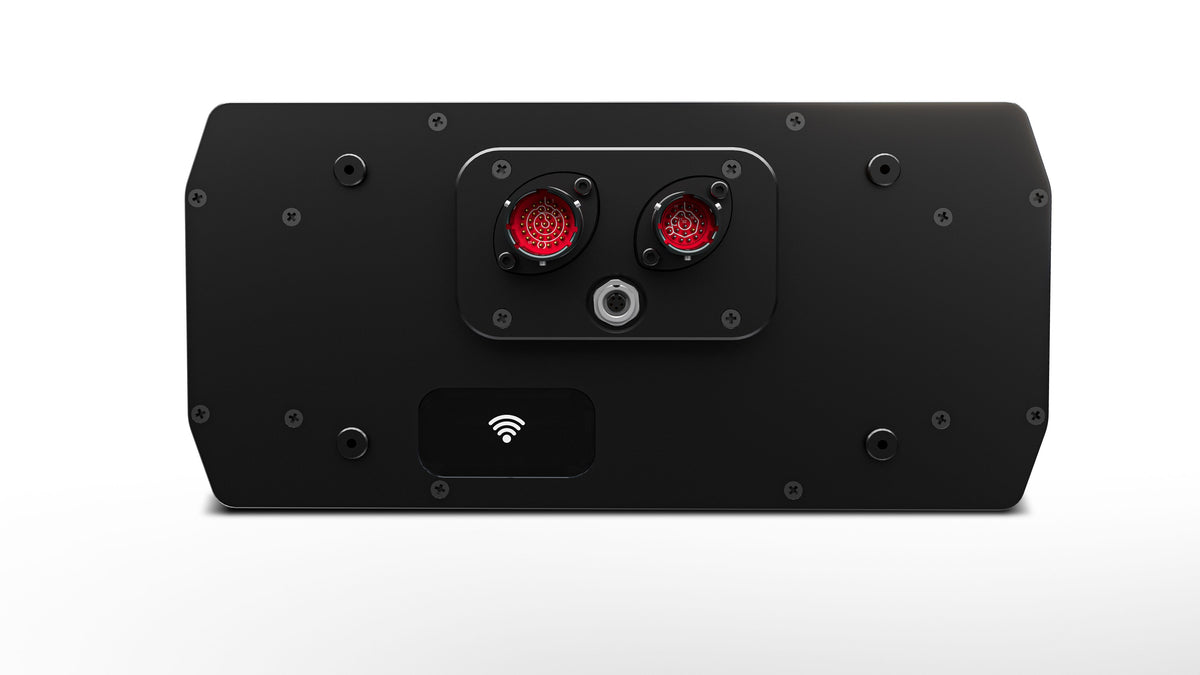

Connectors: 2 Motorsport connectors + 1 Binder connector
Power consumption: 450 mA
Dimensions: 278x135x43.2 mm
Weight: 1,200 g
Waterproof: IP67
