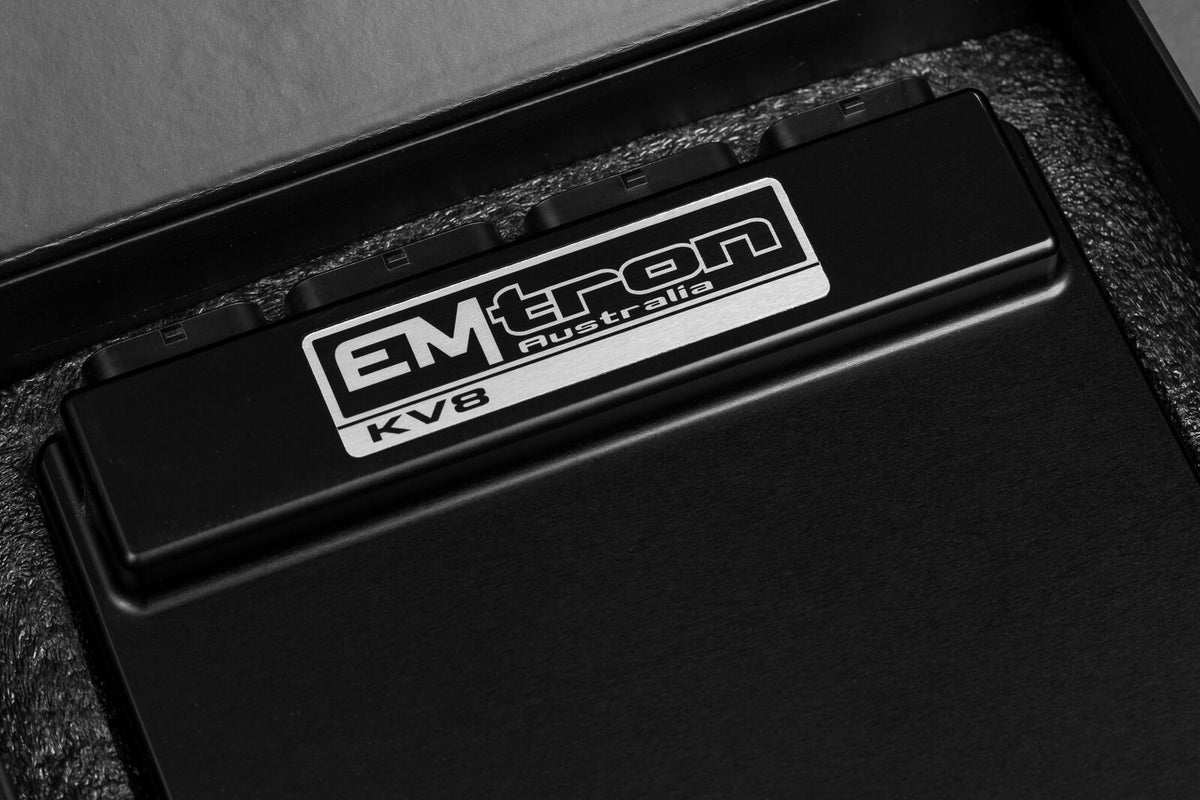

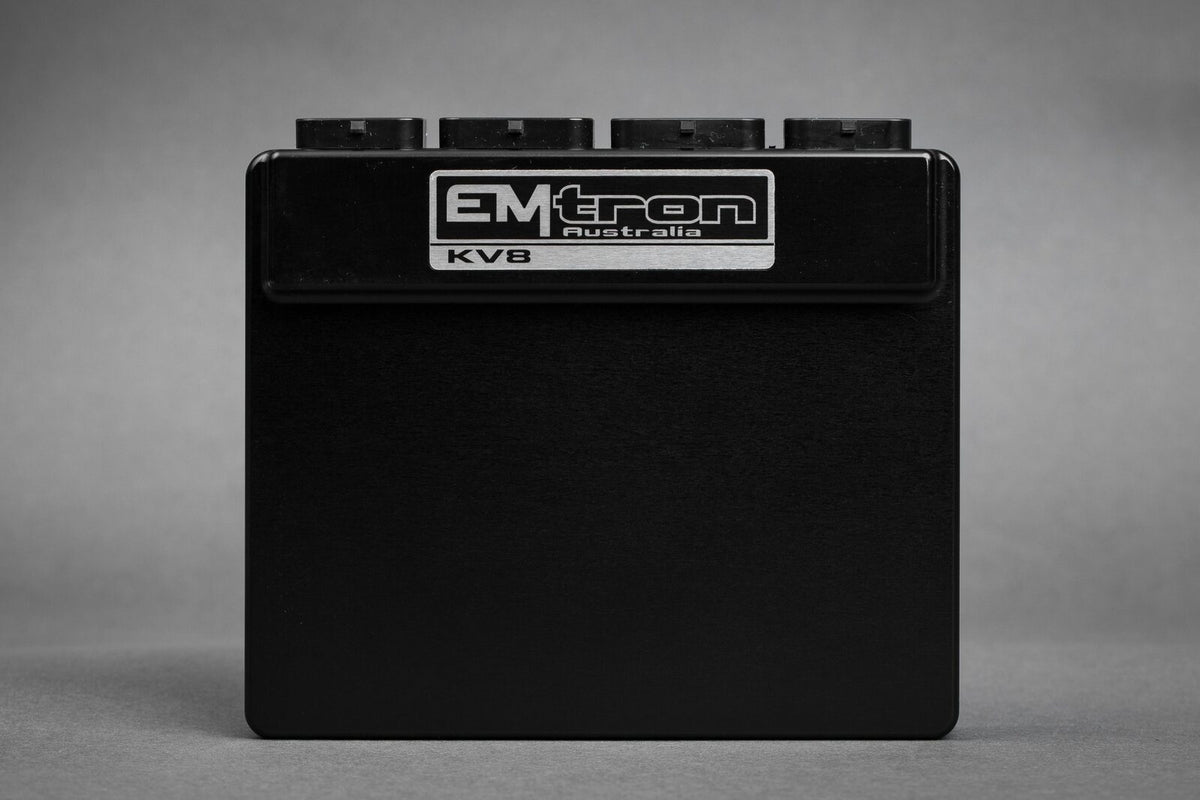

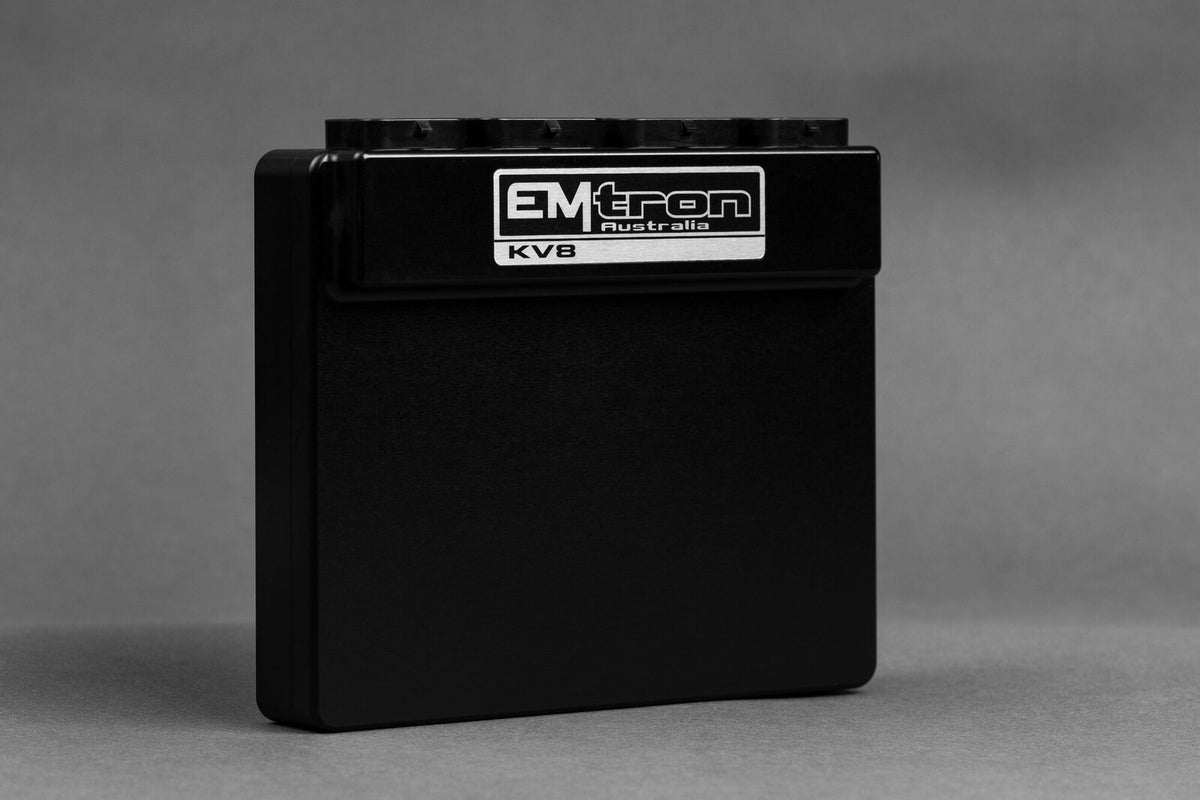

    Emtron KV8 ECU

    $4,400.00

    Emtron’s KV8 is a wire-in ECU with extreme flexibility. Industry leading I/O count will ensure you do not have to make any sacrifices when configuring your engine and vehicle. This ECU will support up to 8 Channels of fuel and 8 Channels fully sequential Ignition. Every KV8 is housed in a durable billet Aluminium enclosure and includes up to 32MB permanent memory for on board logging, 4-channel oscilloscope function, Drive By Wire (DBW) control up to 2 channels, dual LSU4.9 Lambda controllers, dual digital Knock control, Ethernet communications and 3 axis G-force sensing to name a few.

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

    Power Supply:
    - Operating voltage: 6.0 to 22.0 Volts DC (ECU shutdowns at 24.0V)
    - Operating current: 390mA at 14.0V (excluding sensor and load currents)
    - Reverse battery protection via external fuse
    - “Smart” battery transient protection

    Operating Temperature:
    - Max operating range: -30 to 110°C (-22 to 230°F)
    - Recommended operating range: -30 to 85°C (-22 to 185°F)

    Physical:
    - Aluminium 6061 grade CNC billet enclosure
    - Enclosure size 134 mm x 162 mm x 27 mm
    Weight: 730g

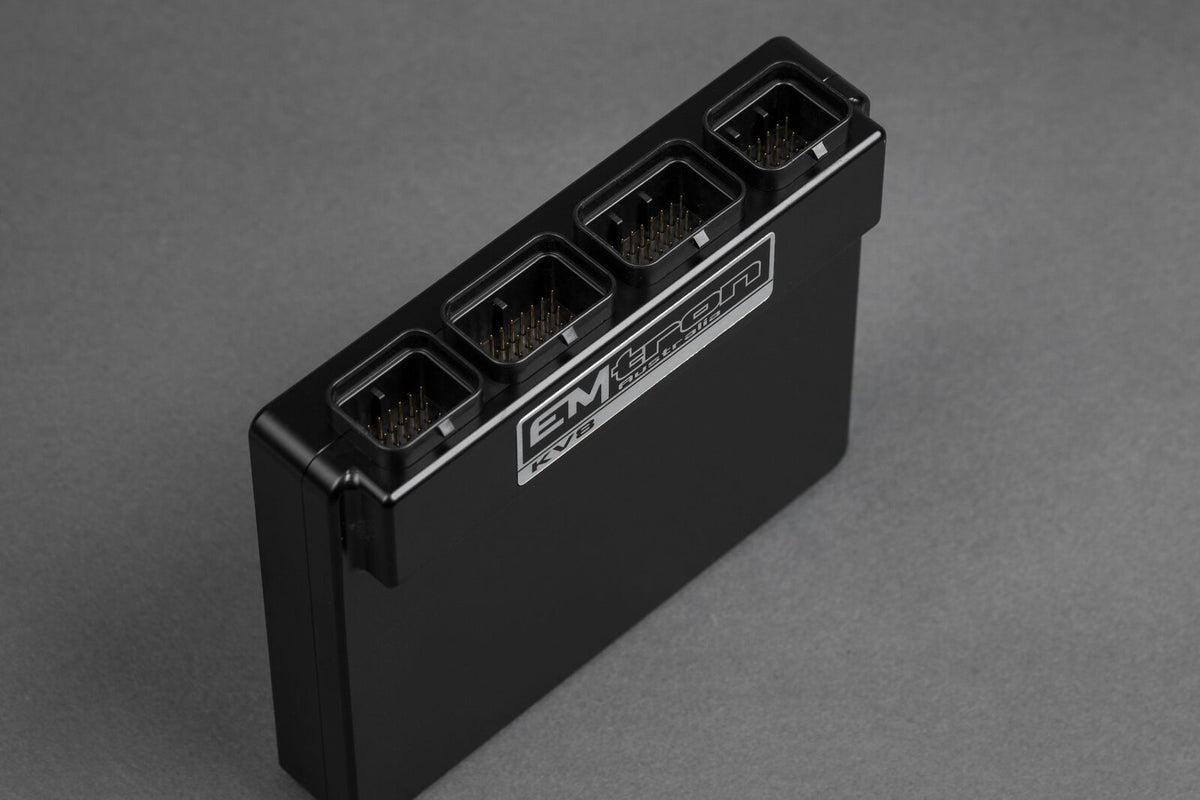

    - Connector system: 120-way Super Seal waterproof connectors with gold plated contacts, pin diameter of 1 mm
    - Current rating: maximum 15A per pin (wire gauge dependant)

    Internal:
    - Dual 100MHz processors
    - 500Mb DDR RAM
    - 32MB ECU logging memory, over 1200 channels available, 1Hz to 500Hz logging rate
    - 4-Channel oscilloscope function
    -- Sampling at 100k samples/second
    -- Includes Crank and Cam sensor inputs
    -- Includes Digital inputs 1-4
    - On-Board barometric pressure sensor, range 40 – 115.0 kPa
    - 3-Axis accelerometer, 16-Bit resolution, +2g/+4g/+8g dynamically selectable full-scale

    Communications:
    - 1x High Speed Ethernet 100Mbps for tuning software connection
    - 2x CAN 2.0B 1Mbps/ 6 Channels per node, total 128 messages
