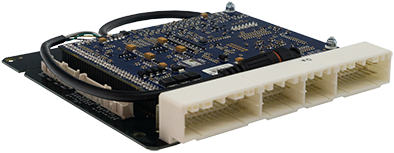

Link G4X EVOLink (IV-VIII) - EVO8X

Name: Link G4X EVOLink (IV-VIII) - EVO8X
Brand: Link ECU
SKU: 203-4000
Price: 2239.33 AUD
Availability: InStock

$2,239.33$2,634.50

Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

This ECU is designed for the EVO 4-8 4G63 engine.

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Includes onboard 7 bar MAP sensor
Most factory features are supported.
Check the features tab for I/O expansion options

Suitable applications:
CN9A Lancer Evolution 4
CP9A Lancer Evolution 5, 6 & 6.5 (TME)
CT9A Lancer Evolution 7
CT9A Lancer Evolution 8 (models with 4-plug ECU only)
*Some EVO 8’s have a 3 plug ECU. These applications will need the EVO9X Link ECU

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

G4X PlugIn Key Features (where applicable):
-Up to 6D fuel and ignition mapping
-Precision closed loop cam control (four cam, independent control)
-Sequential fuel delivery
-Digital triggering, all OEM patterns
-OEM idle hardware supported
-5D boost control with three switchable tables
-Motorsport features - antilag, launch, flat shift
-Continuous barometric correction (on board)
-CAN port
-QuickTune - automated fuel tuning
-Individual cylinder correction
-USB tuning cable included
-Stats recording into on-board memory
-Gear compensations for spark, boost and fuel
-Real time selectable dual fuel, ignition and boost maps
-Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
-Boost control referenced to gear, speed or throttle position
-512 mega bytes data logging memory
-Staged injection
-Knock with "windowing"

I/O Expansion Options
The following expansion connector inputs/outputs are provided:
The Mitsubishi Lancer Evolution IV - VIII plug-in ECU has two expansion connectors.

Expansion connector 1:
Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
DI 7 Digital input
DI 8 Digital input
DI 9 Digital input
Aux 4 Auxiliary Output
Ign 7 Ignition 7 Auxiliary Output
Ign 8 Ignition 8 Auxiliary Output

Expansion Connector 2
Gnd Sensor Ground Only
+5V Out Low Current +5V Supply
Aux 9 EThrottle - can't be used as an Aux Out
Aux 10 Auxiliary Output
An Volt 6 Analog 0-5V input
An Volt 7 Analog 0-5V input
An Volt 9 Analog 0-5V input
An Volt 10 Analog 0-5V input
