    Radium Universal Check Valve
    Radium Universal Check Valve
    Radium Universal Check Valve
    Radium Universal Check Valve
    Radium Universal Check Valve

    Radium Universal Check Valve

    $96.95

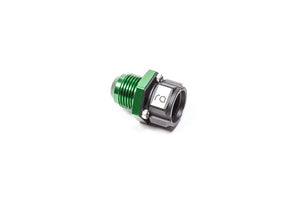

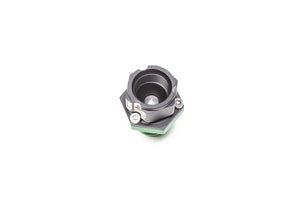

    A 1-way check valve permits flow in 1 direction only. The Radium Enginering universal check valve features a lightweight anodized aluminum body with Viton seals and stainless steel hardware. As shown below, the internal plunger's aerodynamic shape warrants a smooth laminar stream.

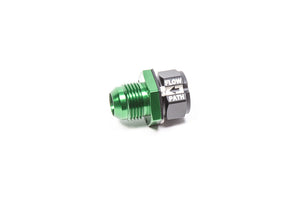

    All female -AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. The flow direction is laser etched on the side of the part. The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.
    In it's native form without adapter fittings, the universal check valve uses a 10AN male outlet and a 8AN female inlet.

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

    SPECIFICATIONS
    Body Seal: FKM Viton
    Plunger Seal: FKM Viton
    Hardware: Stainless Steel
    Spring Material: Stainless Steel
    Plunger Material: Stainless Steel
    Body Material: Anodized Aluminum
    Check Valve Type: Spring-Loaded Piston
    Large Hex: 30mm (or 1-3/16")
    Length, No Adapters: 1.72" (43.6mm)
    Cracking Pressure: 0.3 psi @ 70F
    Max Operating Pressure: 1000+psi @ 70F
    Backflow Holding Pressure: 1000+psi @ 70F
