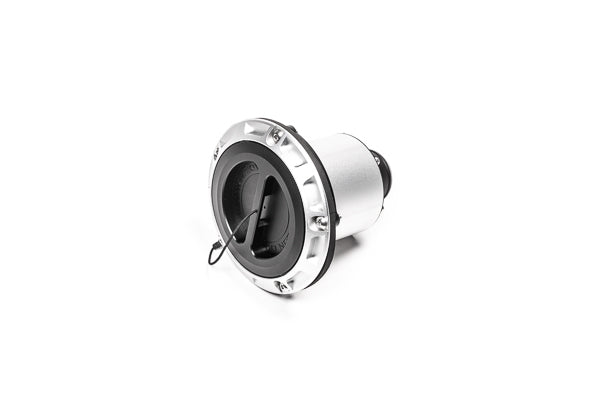

Radium Engineering Remote Mount, Vented Standard Filler, 1.5in

A remote mounted fuel filler is NOT located directly on the fuel tank or fuel cell, but rather somewhere else on the vehicle, such as the fender

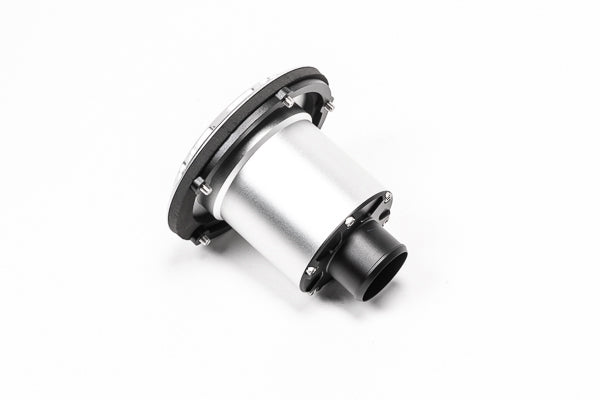

The fuel filler typically secures to the vehicle body. The vented fuel cap has roll-over protection if the vehicle ever becomes inverted. The fill neck has a machined hose barb connection for 1.5in filler hose. The outer diameter is 4.75in and uses 4.25in P.C.D for the five M5 bolts. Total height is 4.1in. Requires a 77mm (3.03in) hole to be fabricated.

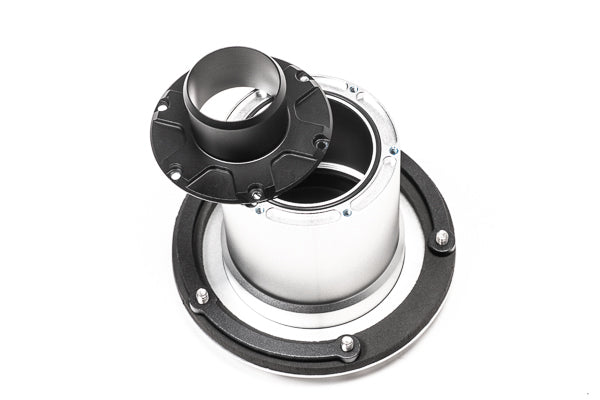

The o-ring sealed 1.5in barbed outlet is interchangeable. By simply removing 6 screws, a different outlet adapter (sold separately) can be installed.

If needed, a tether is also provided.

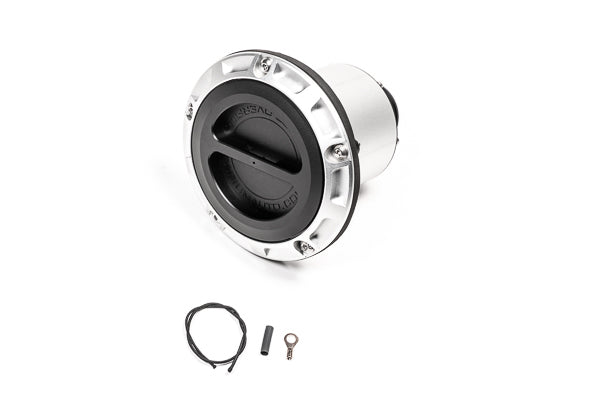

Included:
-Vented Cap with Roll-Over Protection
-Flanged Fill Neck for 1.5in ID Hose
-Ozone/Flame Resistant Gasket
-Anodized Aluminum Nut Ring
-Stainless Steel M5 Bolts
-Tether Components

Notes:
1. Does not include accessories to connect to the fuel tank.
2. Can be upgraded later to a dry break using Radium 20-0549-V.
3. *Supersedes 20-0505-V *
