Radium FPD-XR, 8AN ORB

What makes Radium FPDs unique?
Along with having the flexibility of using common fittings, Radium Engineering FPD's use a vacuum/boost reference port which allows for proper fuel pulse damper performance even at elevated fuel pressures. This becomes essential for boosted systems that use a 1:1 rising rate fuel pressure regulator.

What is the difference between FPD-R and FPD-XR?

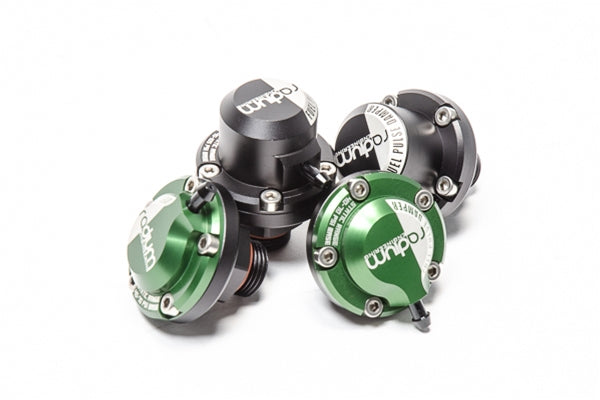

The FPD-R (green top) is slightly shorter than the FPD-XR (black top) allowing it to be used in space-constrained applications.

WHICH DAMPER DO I CHOOSE?
The FPD-R (Fuel Pulse Damper-Range) and FPD-XR (Fuel Pulse Damper-Extra Range) both have unique base "static" fuel pressure requirements:
FPD-R base pressure requirement = 40 - 70psi (static)
FPD-XR base pressure requirement = 40 - 105psi (static)
(Base pressure is the fuel pressure measured when the fuel pump is running WITHOUT a vacuum line connected to the regulator.)

Example 1:
Vehicle: Mitsubishi EVO
OEM Base Static Fuel Pressure: 43.5psi
Boost Pressure: 30psi
Rising Rate Pressure Regulator? Yes
Can I use a FPD-R? Yes. Even though fuel pressure is 73.5psi at full boost, the FPD-R will work because the base static pressure was set within the 40-70psi requirement. However, the vacuum/boost reference line must be installed.
Can I use a FPD-XR? Yes. Also, the vacuum/boost reference line does not need to be installed since maximum fuel pressure does not exceed 105psi.

Example 2:
Vehicle: BMW E46 M3
OEM Base Static Fuel Pressure: 72.5psi
Boost Pressure: 20psi
Rising Rate Pressure Regulator? Yes
Can I use a FPD-R? No. Base static fuel pressure exceeds the 40-70psi requirement.
Can I use a FPD-XR? Yes. Also, the vacuum/boost reference line does not need to be installed since maximum fuel pressure does not exceed 105psi.

Features
1. Male Fitting Selection:
a. The 8AN ORB versions seal using a FKM O-ring.
b. The 3/8" NPT variations seal with the tapered pipe threads.
2. Vacuum Port Orientation:
a. Even after tightened, the newest 8AN ORB dampers (20-0776 and 20-0777), will swivel permitting the vacuum port to be clocked 360 degrees.
b. Because 20-0178 and 20-0179 use tapered threads (NPT), the vacuum port can be clocked to the desired location.
3. This product is safe for use with all fuel types including alcohol blends such as E85.

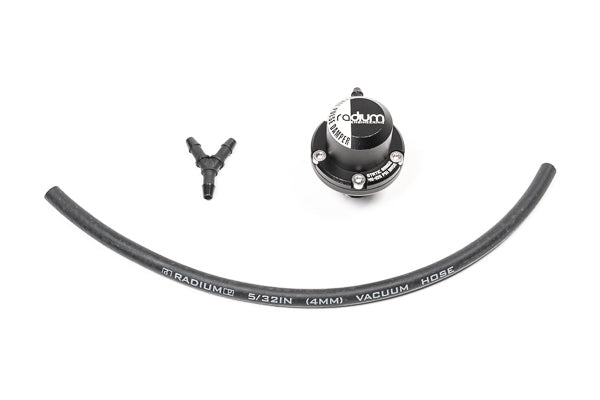

Included:
-Anodized and laser engraved aluminium top, R=range or XR=extra range
-Anodized aluminium body with male threads, 8AN ORB or 3/8" NPT
-Stainless steel hardware
-Rubber vacuum hose, 4mm ID
-Vacuum hose Y-fitting
