Radium SAE Fuel Level Sender, 0-90Ohm, 8.0in, Shrouded

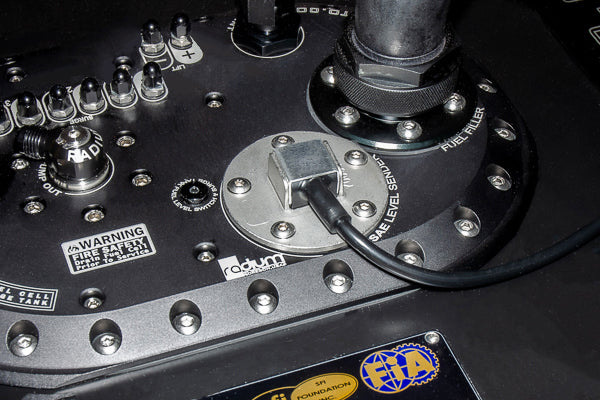

This fuel level sensor uses the standard SAE 5-bolt mounting pattern, extensively used with the Radium Fuel Cell Surge Tank. It features Full stainless steel sealed construction with magnetic float and is suitable for use with gasoline, diesel, water, and all alcohol based fuels including methanol, ethanol, E85, etc.

NOTES:
All level senders are 0 ohms empty to 90 ohms full (common with many aftermarket gauges.)
Radium does not sell fuel level gauges
To test the sender, measure the resistance between the two wires while tipping the sender to allow the float to move.
If the output of this sender is not compatible with your OEM fuel gauge, consider a resistance signal converter.

SPECIFICATIONS:
PROBE MATERIAL: 304 Stainless Steel
FLOAT MATERIAL: Plastic Buna-N
MOUNTING FLANGE: 5-Bolt SAE
MOUNTING GASKET: FKM
RESISTANCE: 0 (Empty)-90 (Full) Ohms
PVC WIRES: 18" (460mm) with PA Cover
CONNECTORS: Deutsch DT, 2P
OPERATING TEMP: -40F to +185F

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

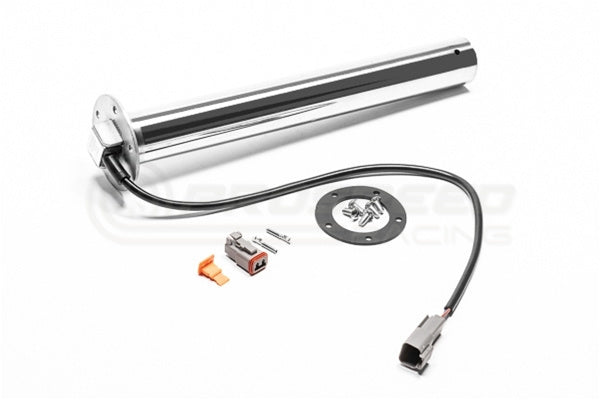

Kit Includes:
Level Sensing Probe
SAE 5-Bolt Gasket
Stainless Bolts 10-32 (x5)
Deutsch DT 2P Connector
Deutsch DT Sockets (x2)
