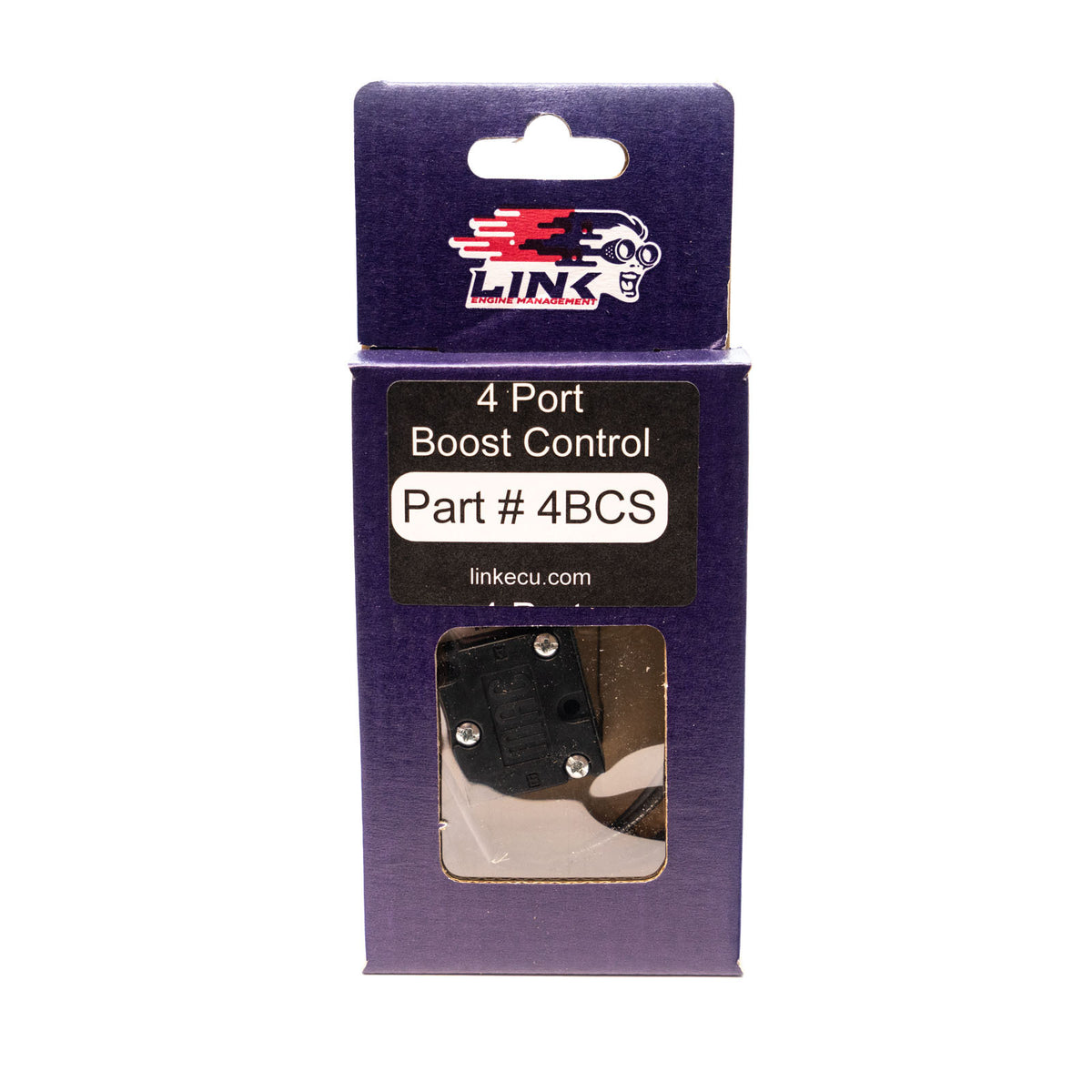

Link Boost Control Solenoid - 4 Port (4BCS)

Thinking of turning up the boost to the max? Then this 4 port boost control solenoid is perfect. It allows for precise boost control of up to 120PSI.

4 port Boost control solenoids are commonly used for big boost applications, boost levels can be raised as high as 6-7 times the spring pressure of the wastegate and they allow you to use lower wastegate spring pressures for more precise boost control when launching. Particularly useful in high-power traction limited situations where you might want low boost in low gears and a higher boost in high gears.

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

Features:

Up to 120PSI
Compatible with all Link ECU’s
Can be used with single or multiple wastegates
Fast and consistent response times
High shifting forces
MAC 45 series – Rugged, reliable and long operational life
Short stroke, high flow
Balanced poppet, immune to variations of pressure
We recommend starting with a PWM Frequency of 25Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file within the PCLink software which is available for free download.

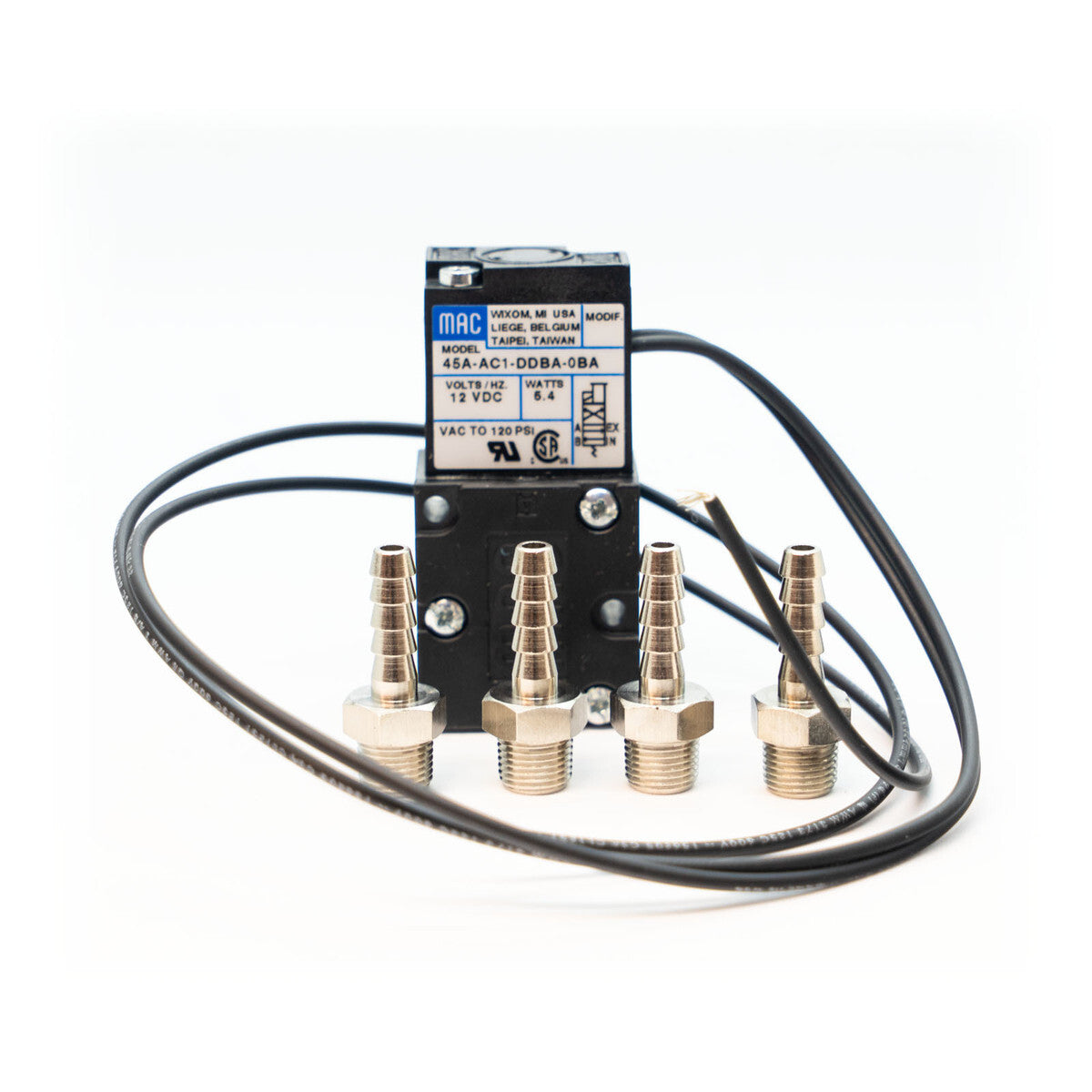

Specifications:

MAC 45 series
120 PSI max
1/8” BSPPL
12 VDC (5.4W) 18” (45cm) coil leads
Includes 4 x 1/8” BSP hose tail fittings for easy connection
