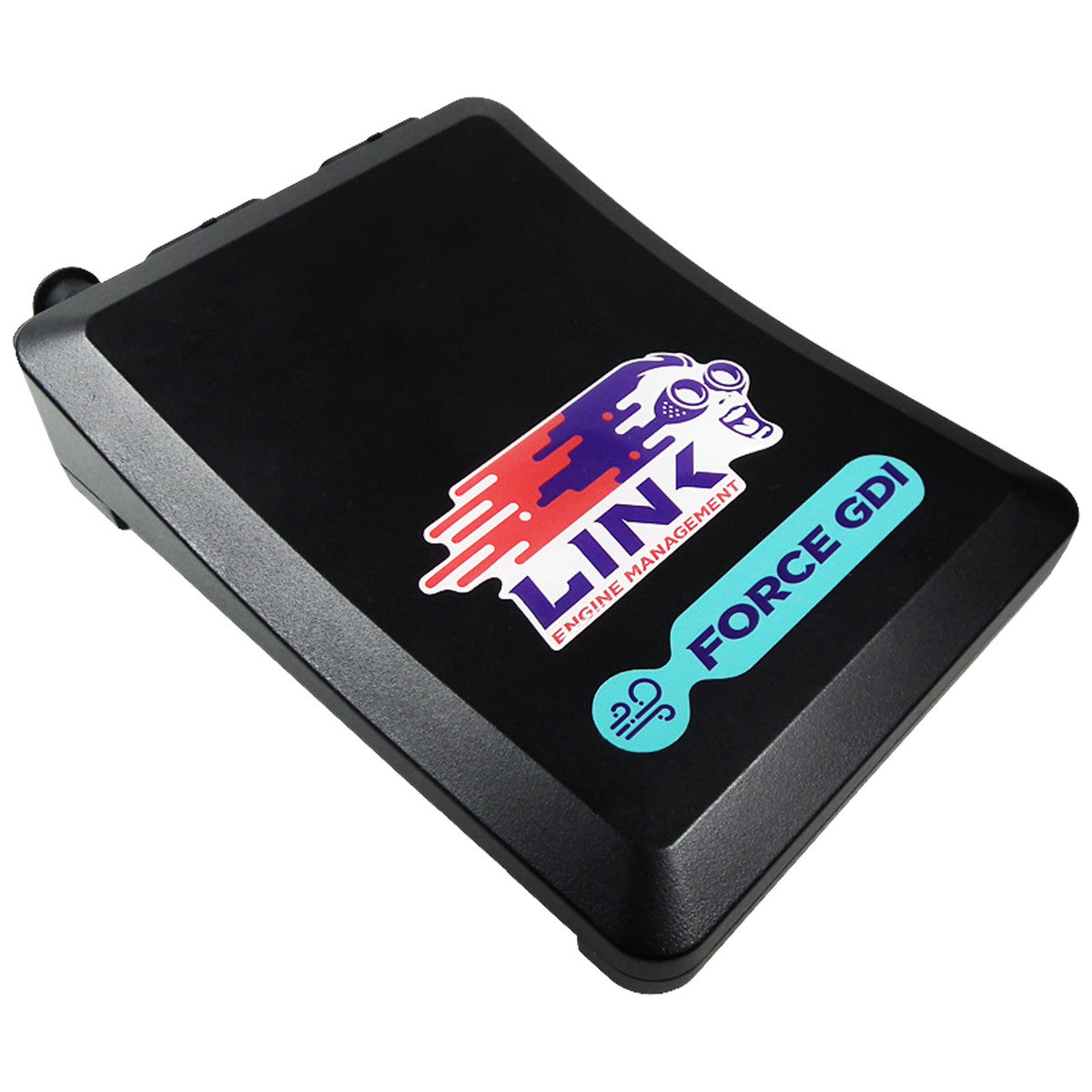

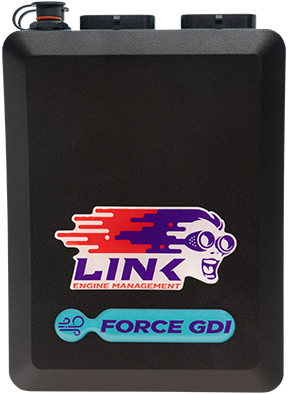

Link G4+ Force GDI

SPEC OVERVIEW:

Inputs:
8/10* x Digital inputs
4 x Temperature inputs
11 x Analog inputs
2 x Trigger inputs
2 x Knock inputs
1 x LSU 4.9 Wideband lambda sensor input
*2 inputs required when using 2nd CAN Bus

Outputs:
4 x High voltage injector drivers (60V 10/5A Peak/Hold Current)
1 x GDI pump/Spill valve driver (11.8/6A Peak/Hold)
4 x Ignition drivers
10 x Auxiliary outputs^
+5V Sensor power supply
+8V Sensor power supply
^unused ignition drives can be used as additional Aux outputs

Communications:
2* x CAN bus
1 x Serial (RS232) connection
1 x USB tuning connection

Physical:
Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)
Mass: 680grams

Advanced features found only on the Force GDI:
4 high voltage Boost/Peak/Hold GDI injector drives, user definable voltage, current and durations.
1 Spill valve/GDI pump driver, peak & hold or saturated mode. User definable current.

What's in the box?
Supplied with USB tuning cable and mounting bracket. Requires “A” & “B” looms or “A” & “B” connector kits.
