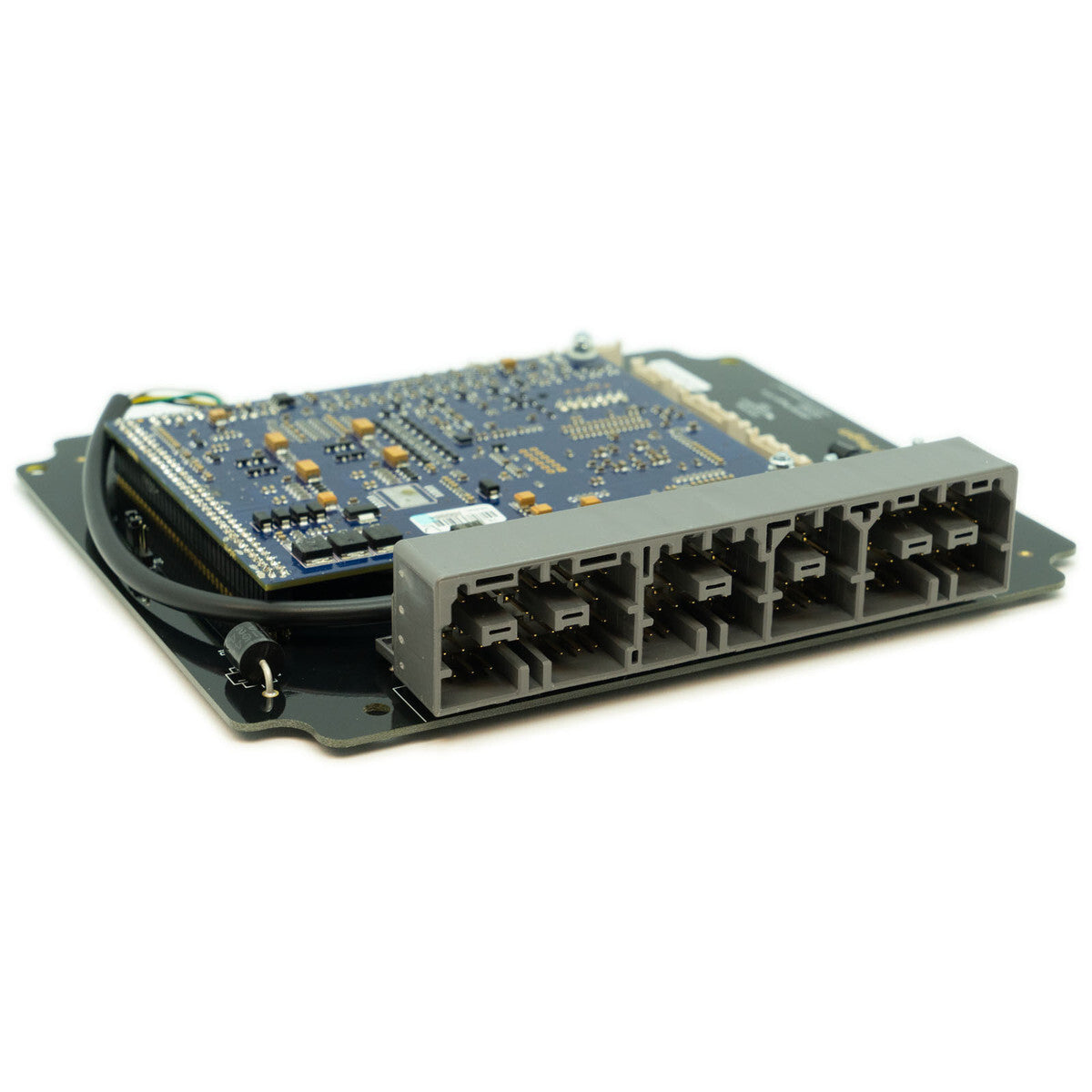

Link G4X JZXLink - JZX100X

G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune - automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory
- Staged injection
- Knock with "windowing"

I/O Expansion Options
The following expansion connector inputs/outputs are provided:

Expansion Connector 1: (Con5)
Gnd - Sensor Ground Only
An Volt 4
An Temp 2
+5V Out - Low Current +5V Supply
An Volt 5
DI 3
DI 4
Aux Inj 8

Expansion Connector 2: (Con6)
An Temp 4
DI 1
DI 2
Aux Ign 4
Aux Ign 5
Aux Ign 6
An Volt 1
An Volt 2
