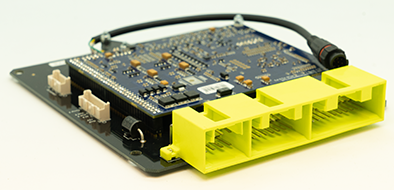

    Link G4X VR4Link - VR4X

    $1,566.13$1,842.50

    Easy to install. Affordable. Reliable.
    G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
    This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

    This ECU is designed for the Vr4 4G63T engine.

    Please check your connector matches the header in the listed photo before purchasing.
    This ECU works for manual transmissions only.
    Includes onboard 7 Bar MAP sensor.
    Knock control not available on this ECU.
    Most factory features are supported.
    Check the features tab for I/O expansion options.
    This ECU will need a modification before E-Throttle is usable.

    Suitable Applications:
    Mitsubishi Galant VR-4 E38A (1987-1992) with 4G63T engine
    Mitsubishi Galant VR-4 E39A (1987-1992) with 4G63T engine
    1G DSM with 4G63T engine

    If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

    FREE SHIPPING ON ORDERS OVER $1200!**

    Product Info

    G4X PlugIn Key Features (where applicable):
    - Up to 6D fuel and ignition mapping
    - Precision closed loop cam control (four cam, independent control)
    - Sequential fuel delivery
    - Digital triggering, all OEM patterns
    - OEM idle hardware supported
    - 5D boost control with three switchable tables
    - Motorsport features - antilag, launch, flat shift
    - Continuous barometric correction (on board)
    - CAN port
    - QuickTune - automated fuel tuning
    - Individual cylinder correction
    - USB tuning cable included
    - Stats recording into on-board memory
    - Gear compensations for spark, boost and fuel
    - Real time selectable dual fuel, ignition and boost maps
    - Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
    - Boost control referenced to gear, speed or throttle position
    - 512 mega bytes data logging memory
    - Staged injection
    - Knock with "windowing"

    I/O Expansion Options
    The following expansion connector inputs/outputs are provided:

    Expansion Connector 1
    Gnd Sensor Ground Only
    +5V Out Low Current +5V Supply
    DI 6 Digital Input for switching functions.
    An Volt 5 Analog 0-5V input
    An Volt 6 Analog 0-5V input
    An Temp 3 Temperature sensor input

    Expansion Connector 2
    Gnd Sensor Ground Only
    +5V Out Low Current +5V Supply
    Aux 9 EThrottle - can't be used as an Aux out
    Aux 10 Auxiliary Output
    An Volt 6 Analog 0-5V input
    An Volt 7 Analog 0-5V input
    An Volt 9 Analog 0-5V input
    An Volt 10 Analog 0-5V input
