Radium Fuel Rail Kit, Toyota Supra 2JZ-GTE

Name: Radium Fuel Rail Kit, Toyota Supra 2JZ-GTE
Brand: Radium
SKU: 20-0215
Price: 375.25 AUD
Availability: InStock

$375.25$395.00

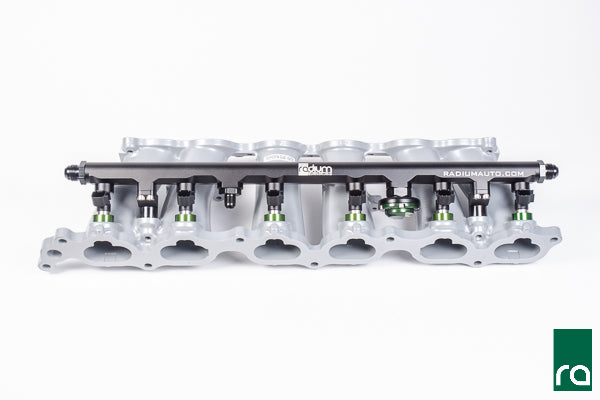

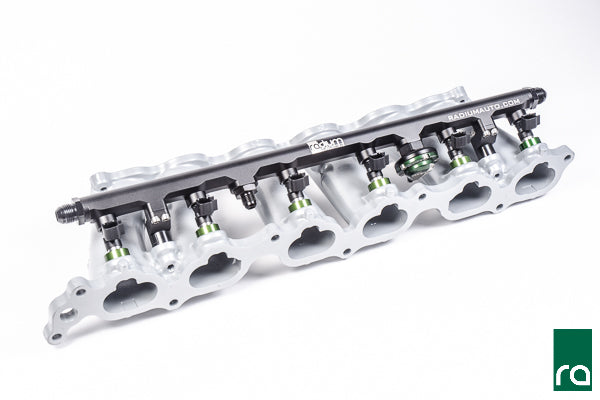

Compatible with all Toyota 2JZ-GTE engines (VVTi and non-VVTi) that use the OEM intake manifold.

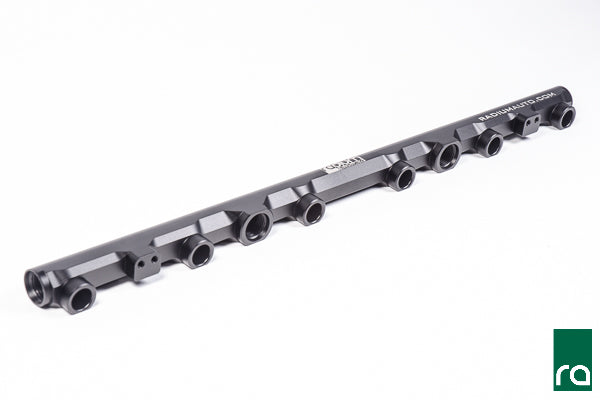

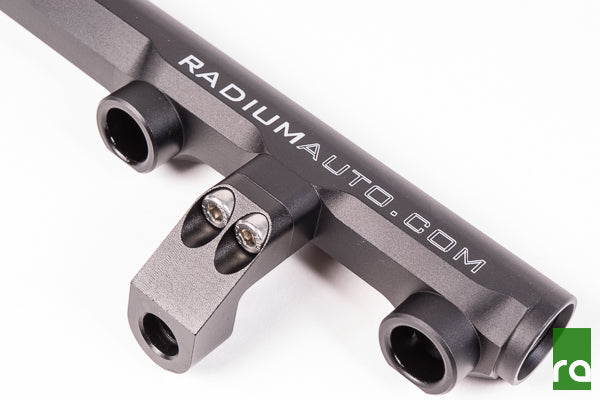

Manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements. They are CNC machined from a custom 6063 aluminium, media blasted, black anodised, and laser etched for a high quality surface finish. This kit is compatible with all fuel types, including popular alcohol mixtures such as E85.

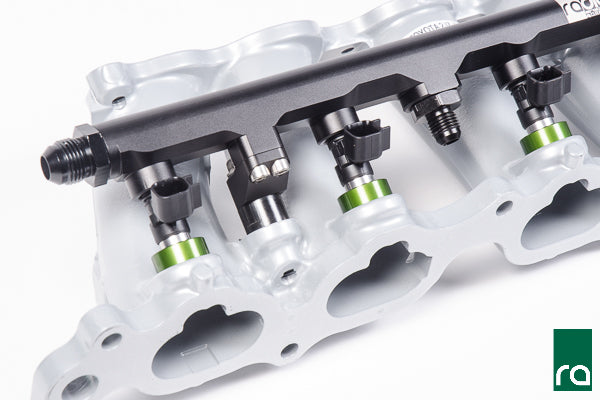

The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (NOT INCLUDED). The kit includes 2 different sets of mounting feet, allowing various height fuel injectors to be used.

The anodised aluminium mounting feet secure the fuel rail to the intake manifold, reusing the OEM Toyota thermal insulating spacers (P/N: 90561-08009).

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

The fuel injector bores and the included press-fit injector seats are designed for 14mm injector O-rings. These seats include O-rings to prevent boost pressure leaks. They are CNC machined billet aluminium, anodised, and laser etched. Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit.

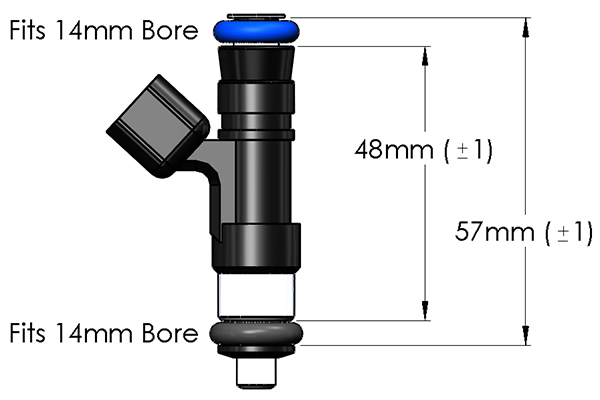

Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the tall spacers:
Injector Dynamics ID1050-XDS-48-14-14
Injector Dynamics ID1300-XDS-48-14-14
Injector Dynamics ID1700-XDS-48-14-14
Injector Dynamics ID2600-XDS-48-14-14

To permit increased throttle body clearance, we recommend using the short spacers in conjunction with the injector sizing.

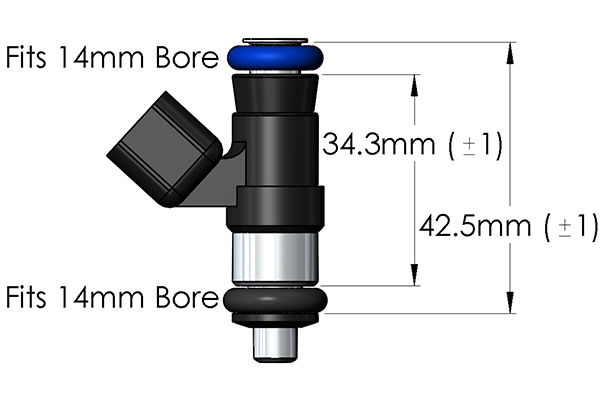

Below are some of the many fuel injectors that are a direct fitment with this Radium fuel rail kit using the short spacers:

Injector Dynamics ID1050-XDS-34-14-14
Injector Dynamics ID1300-XDS-34-14-14
Injector Dynamics ID1700-XDS-34-14-14
Injector Dynamics ID2600-XDS-34-14-14

To reuse the OEM fuel pressure regulator, select the 20-0301. If securing to the front port, modification to the Traction Control TPS sensor is required when using the tall spacers. Check for firewall clearance if mounting on the rear port.

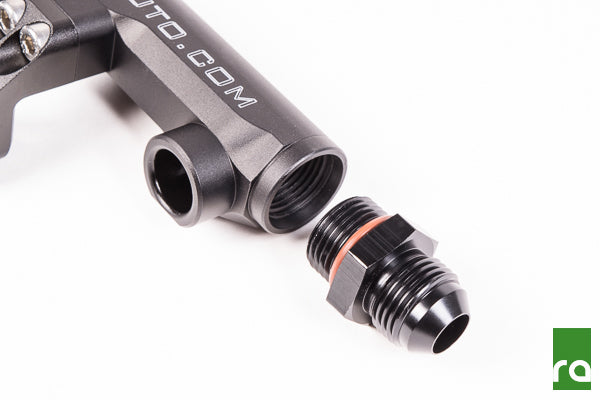

To reuse the factory fuel feed line, select 14-0285 8AN ORB to M12x1.25mm Female Fitting. This can secure to the rear port and reuse the OEM fuel feed banjo bolt.

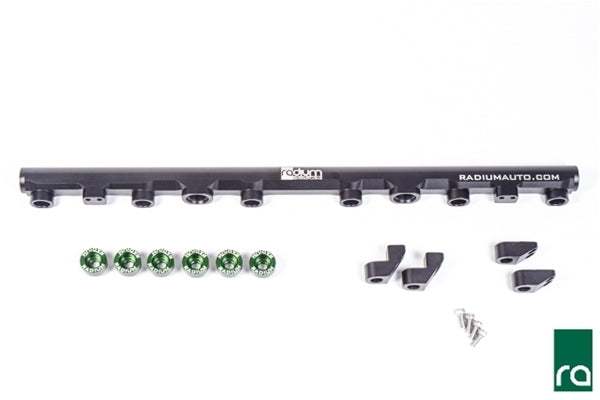

INCLUDED

20-0215 Toyota 2JZ-GTE Fuel Rail:
-Black Anodised Laser Etched Aluminium Fuel Rail
-Black Anodised Aluminium Mounting Feet, Tall and Short
-Stainless Steel Mounting Feet Bolts (x4)
-20-0216-06 Toyota Injector Seat Kit, 6 Cylinder
