The fuel rail ports are tapped for 8AN ORB.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.

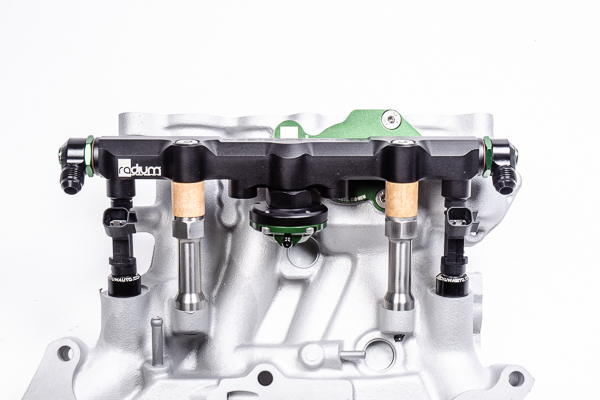

This Radium Engineering secondary fuel rail is for the Mazda 13B-REW rotary engine.
With the use of the provided 2AN ORB plugs, this adaptable design permits both the OEM 2-port intake manifold and aftermarket 4-port intake manifolds.
The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensor , a pressure transducer, fuel pulse damper, etc.

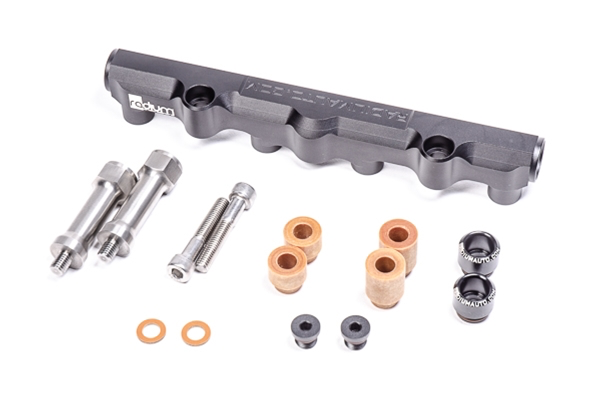

Insulating phenolic spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.
For the OEM 2-port intake manifold, the included 20mm phenolic spacers, billet injector seats, and 2AN ORB plugs will be used. Also, for the required space, an air control valve delete for the OEM 13B-REW intake manifold (sold separately) is required.
The included 14mm lower injector seats were designed specifically to be compatible with or without the OEM diffusers in place. They feature Viton O-rings making them suitable for boosted applications. NOTE: if using an Elite Rotary Shop 4-port intake manifold , 2 extra injector seats are required.
