Radium Universal Check Valve Kit, 10AN

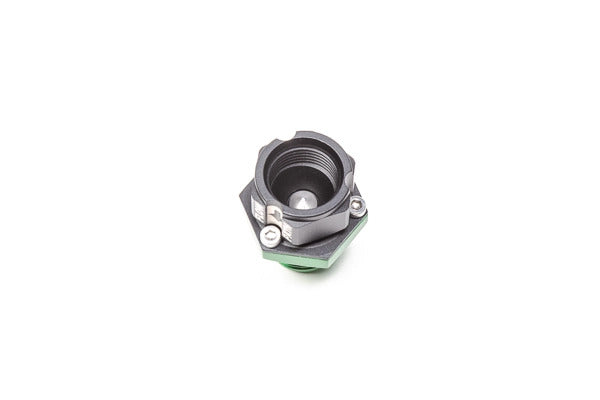

A 1-way check valve permits flow in 1 direction only. The Radium Enginering universal check valve features a lightweight anodized aluminum body with Viton seals and stainless steel hardware. As shown below, the internal plunger's aerodynamic shape warrants a smooth laminar stream.
All female -AN ports can accept 37 degree flare male fittings and/or ORB (O-ring boss) male fittings. The flow direction is laser etched on the side of the part. The check valve is compatible in multiple applications including gasoline, ethanol, methanol, diesel, water, coolant, oil, etc.

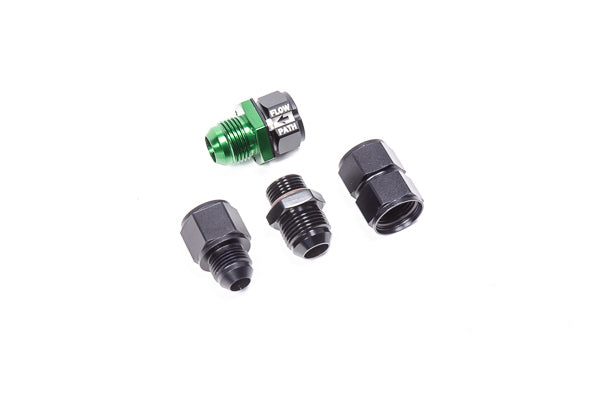

The 10AN kit includes the 20-0534 check valve body but adds all the necessary adapter fittings to convert both the inlet and the outlet to 10AN male and/or 10AN female.

If you have a deadline to meet, please confirm that we have stock ready for dispatch to avoid disappointment!

FREE SHIPPING ON ORDERS OVER $1200!**

Product Info

SPECIFICATIONS:
Body Seal: FKM Viton
Plunger Seal: FKM Viton
Hardware: Stainless Steel
Spring Material: Stainless Steel
Plunger Material: Stainless Steel
Body Material: Anodized Aluminum
Check Valve Type: Spring-Loaded Piston
Large Hex: 30mm (or 1-3/16")
Length, No Adapters: 1.72" (43.6mm)
Cracking Pressure: 0.3 psi @ 70F
Max Operating Pressure: 1000+psi @ 70F
Backflow Holding Pressure: 1000+psi @ 70F
